FJORD 53 XL (NEW) in 2023

The amazing, smart and eye-catching flag ship

FJORD presents its exciting new flagship, the 53 XL. This superlative FJORD naturally features the iconic looks that give the brand instant recognition on the water and attract attention in every marina. With her full equipment list and smart configuration options, each FJORD 53 XL is as individual as her owner, being built exactly to the customer's wishes. Highlights of the FJORD 53 XL include generous windows in the hull, a variable interior layout including a crew cabin, a futuristic helm station and a tender garage. And it goes without saying that the FJORD 53 XL always delivers impressive performance thanks to her IPS drives.

Technical Details

LOA	16.70 m	54' 9"
Hull lenght	14.50 m	47' 6"
Beam	4.79 m	15' 9"
Draft max	1.37 m	4' 6" tbc
Water tank	390 l	86 UK gal
Fuel tank	2080 l	457 UK gal
Displacement	17.8t	7.52 UK t tbc
CE Category	B	B
Max. persons	18	18
Engine Standard
2x Volvo Penta D4-270	approx.	32 knots*
Engine Option
2x Volvo Penta D4-320	approx.	44 knots*

Standard Equipment

Hull

/ GRP hull, isophthalic gelcoat, colour: signal white (according to colour card), 1st layer vinyl ester resin. Vacuum infused.

/ Waterline, isophthalic gelcoat, colour: jet black (according to colour card) / 7 openable portholes (4 in master cabin, 2 in toilet, 1 in guest cabin)

Deck & Cockpit

/ Dashboard, colour: signal white (according to colour card), with foot support, handrail, glovebox, cupholder, horn, switch panel, engine room fire extinguisher system, 2 emergency fuel cut off (pantry).

/ GRP deck, isophtalic gelcoat, colour: signal white (according to colour card), 1st layer vinyl ester resin. Stainless steel tie bar for fender. Large diameter stainless steel handrails, 2 gates at stern. Fold out stairs on port side and starboard bulwark. Manual engine hatch.

/ Teak on deck, bathing platform and gunwale

/ FJORD steering wheel with tilting system

/ Full glass windshield with wipers

/ Shower unit with hot and cold water

/ Bathing ladder, telescopic, integrated in bathing platform

/ 8 aluminium mooring cleats, stainless steel handrails

/ Anchor arm system, hydraulic folding with 20 kg anchor galvanized, stainless steel chain and electrical windlass with automatic fuse

/ Pilot and Copilot seats with hinged bolster

/ T-Top with windshield frame, gelcoat finishing, colour: white

Propulsion

/ Engine room, sound insulated, fans, fire extinguisher system, automatic and manual, Batteries-Engines: 2 x 90 Ah

/ 12 V, Battery charger 150 A (for service batteries)

/ 2 Volvo Penta IPS700 (550 hp) with propeller TBC, joystick

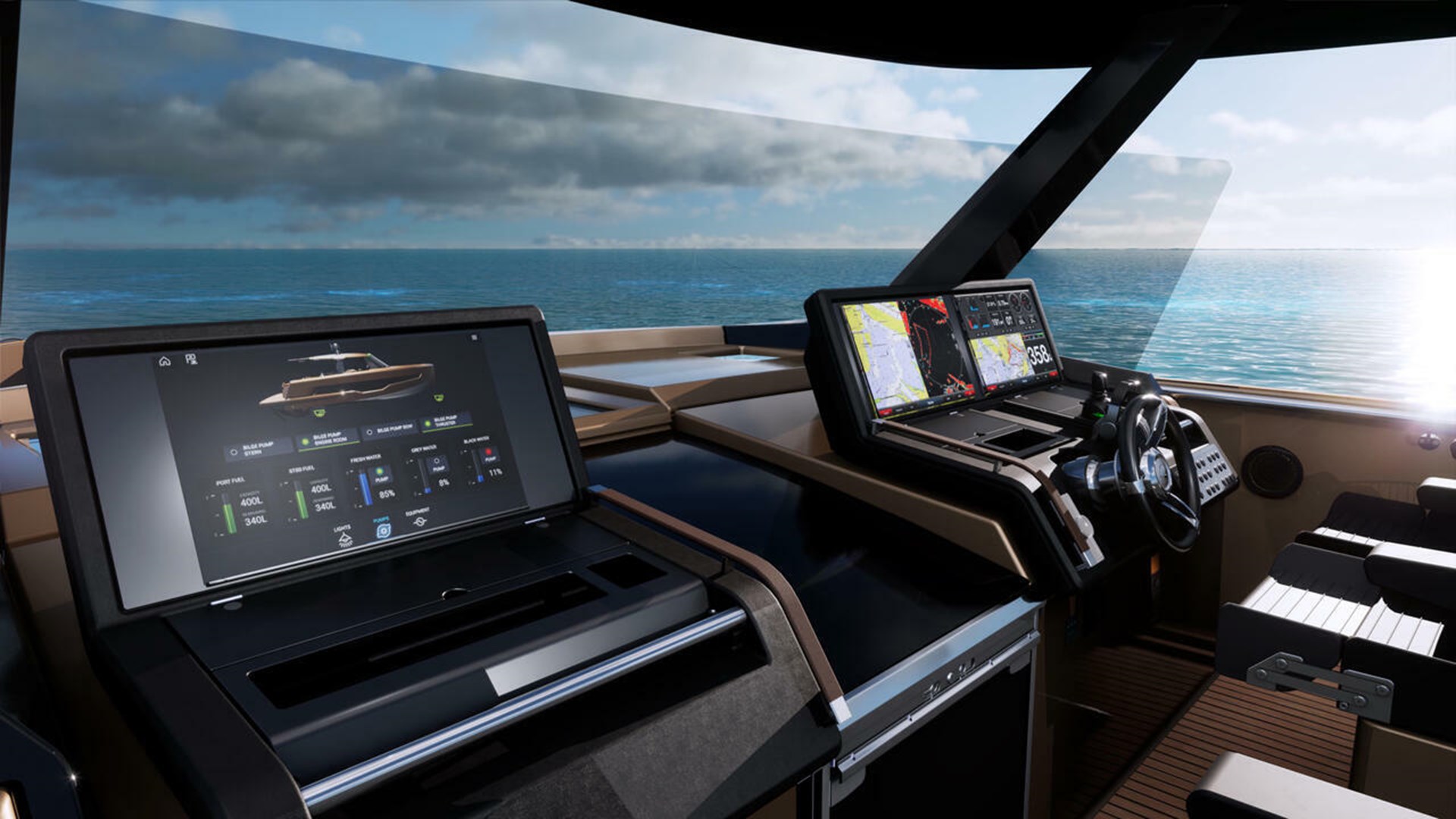

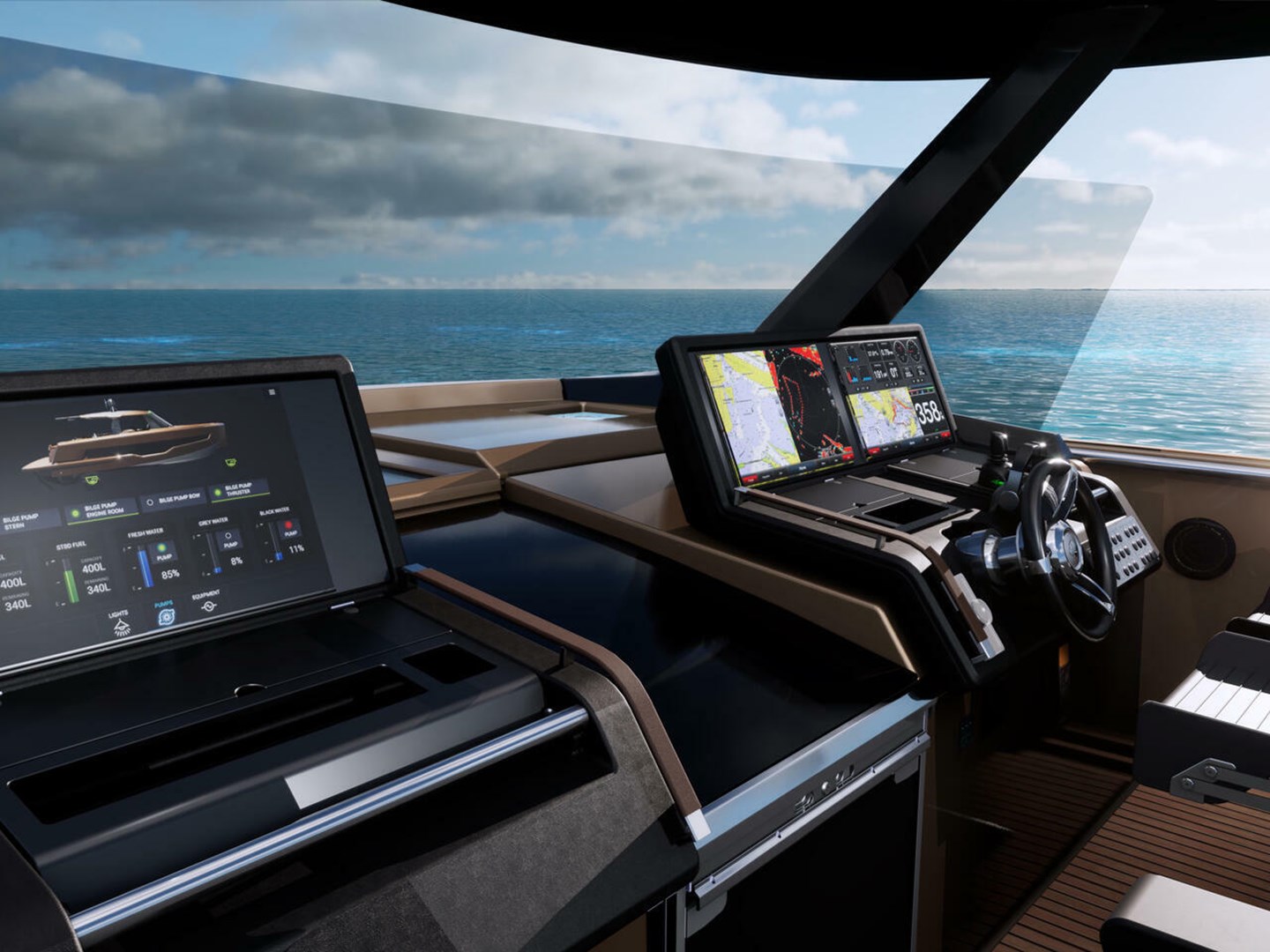

/ Volvo Penta multifunction 7'' display

/ Volvo Interceptor system with auto trim and List

/ Fuel tank, capacity: 2080 litres, fuel filter

Electrical Equipment

/ 12 V and 230 V electric system with 230 V shore power connection and digital switchboard. Sockets in master cabin (3), toilet (1), guest cabin (1), engine room (1), storage room (1) and 12V on dashboard (1)

/ Batteries-Service: 2 x 260 Ah AGM / Country Version: EU / AUS

/ Inverter/charger 12 V

/ 3000 W - 150 A

/ Wireless charging for mobile phone in cabin

/ Generator, Fisher Panda 5000i (4kW)

/ Electric toilet

/ Dimmable spot lights, indirect lights and reading lights in cabins. Light in toilet, under T-top, in storage room and in engine room.

/ Holding tank, capacity: 200 litres

/ Water tank, capacity: 390 litres

/ Hot water boiler (40 l) and pump

/ Bilge pumps: automatic electric (3) and manual emergency bilge pump in cockpit (1)

Navigation & Instruments

/ MyFJORD Safety Cloud with 24 months subscription and device installed on board

Layout & Interior

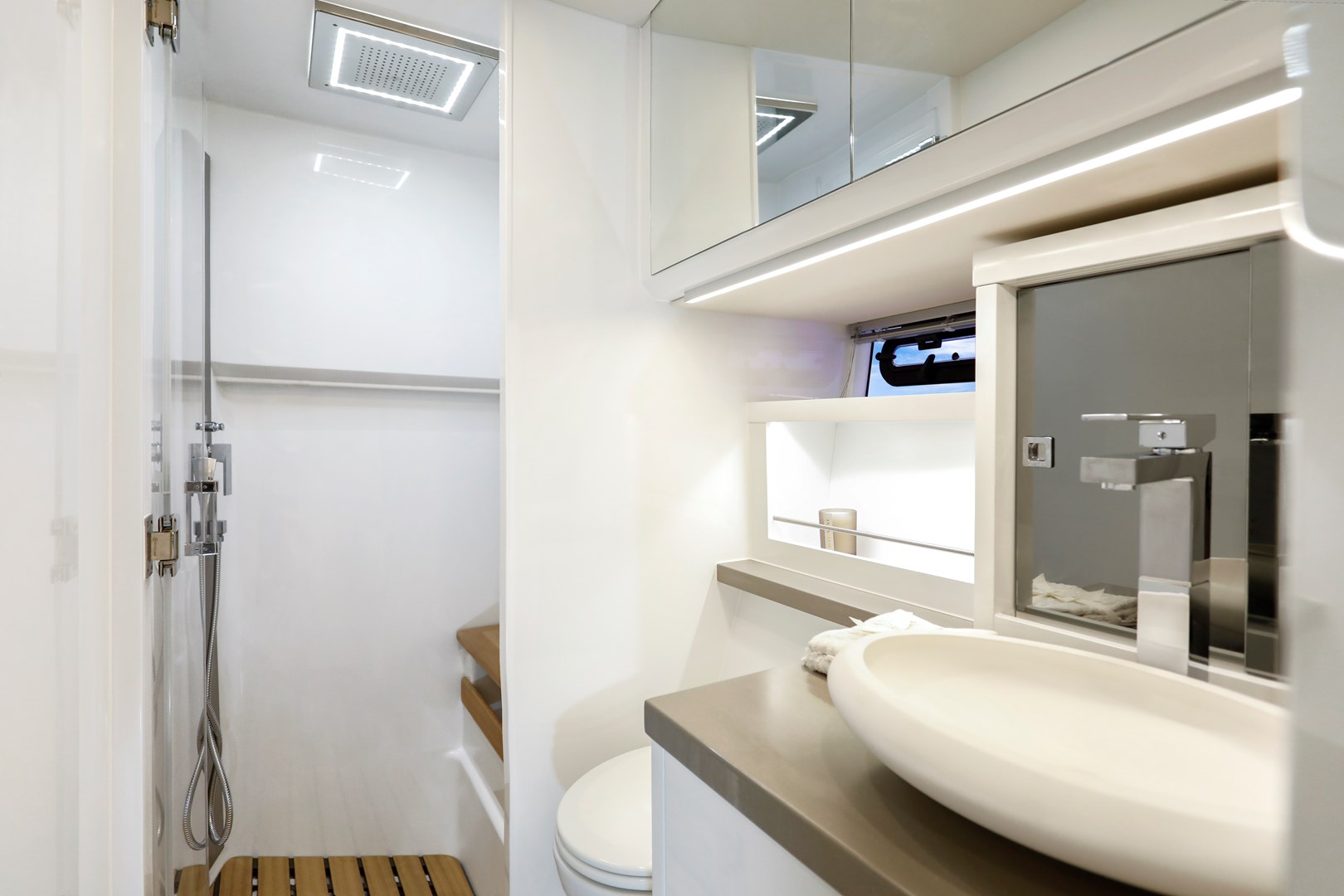

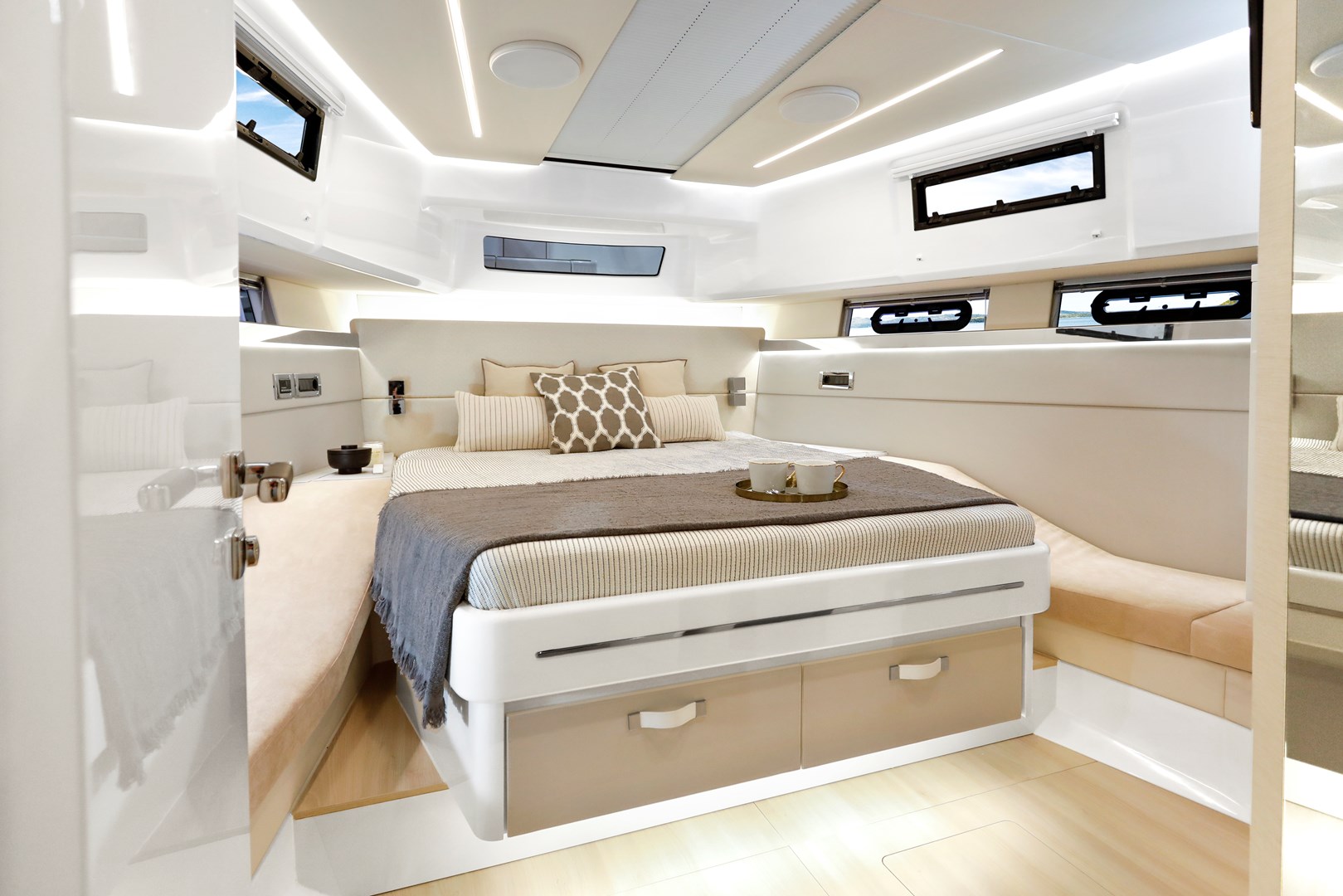

/ A1: Master cabin with double berth incl. 2 integrated drawers, 1 locker on p side and 2 bedside tables . 3 skylights, 2 openable. Fully equipped head with separate shower stall with rain and handheld shower and comfort seat with wood cover.

/ B1: Lobby with door to master head. 1 locker and walk in wardrobe on sb side.

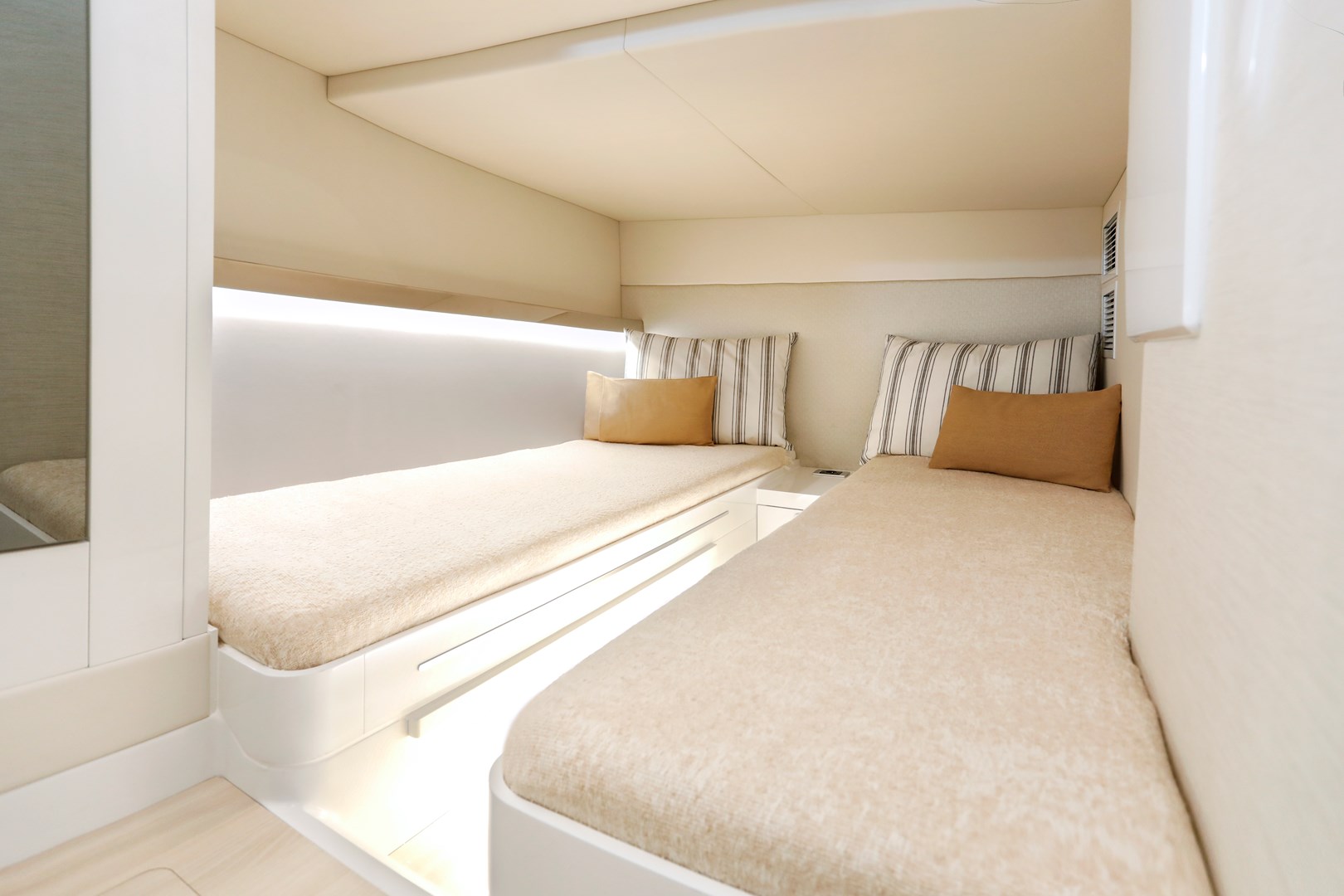

/ C1: Guest cabin with twin berths, 1 wardrobe, storage and 1 bedside table

/ D1: Storage room with separate access from deck, spot light and 220 V socket

Exterior Modules

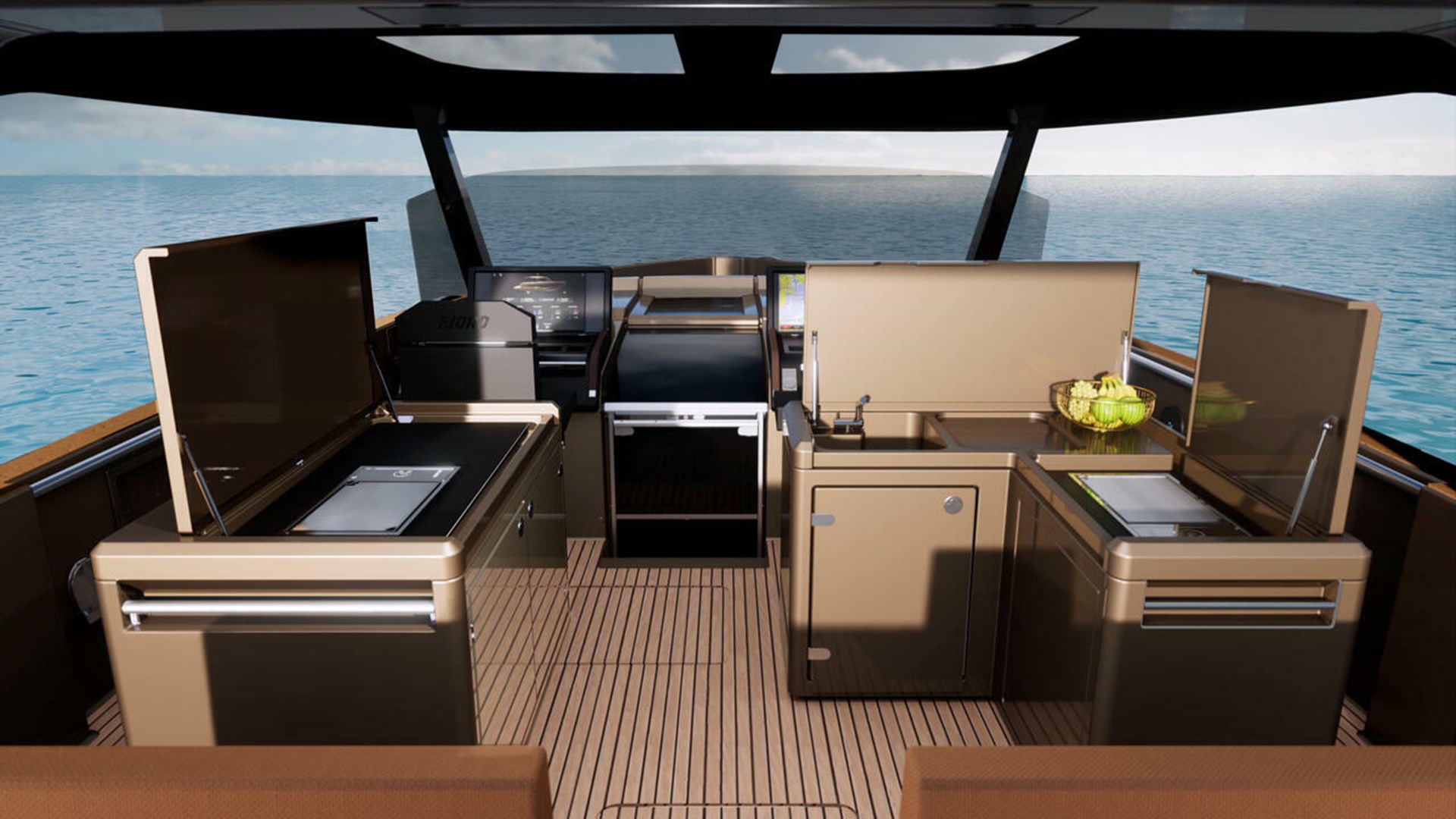

/ E1: Additional copilot seat with galley module on p side with working top in marine mineral stone and storage underneath. Cover for everything.

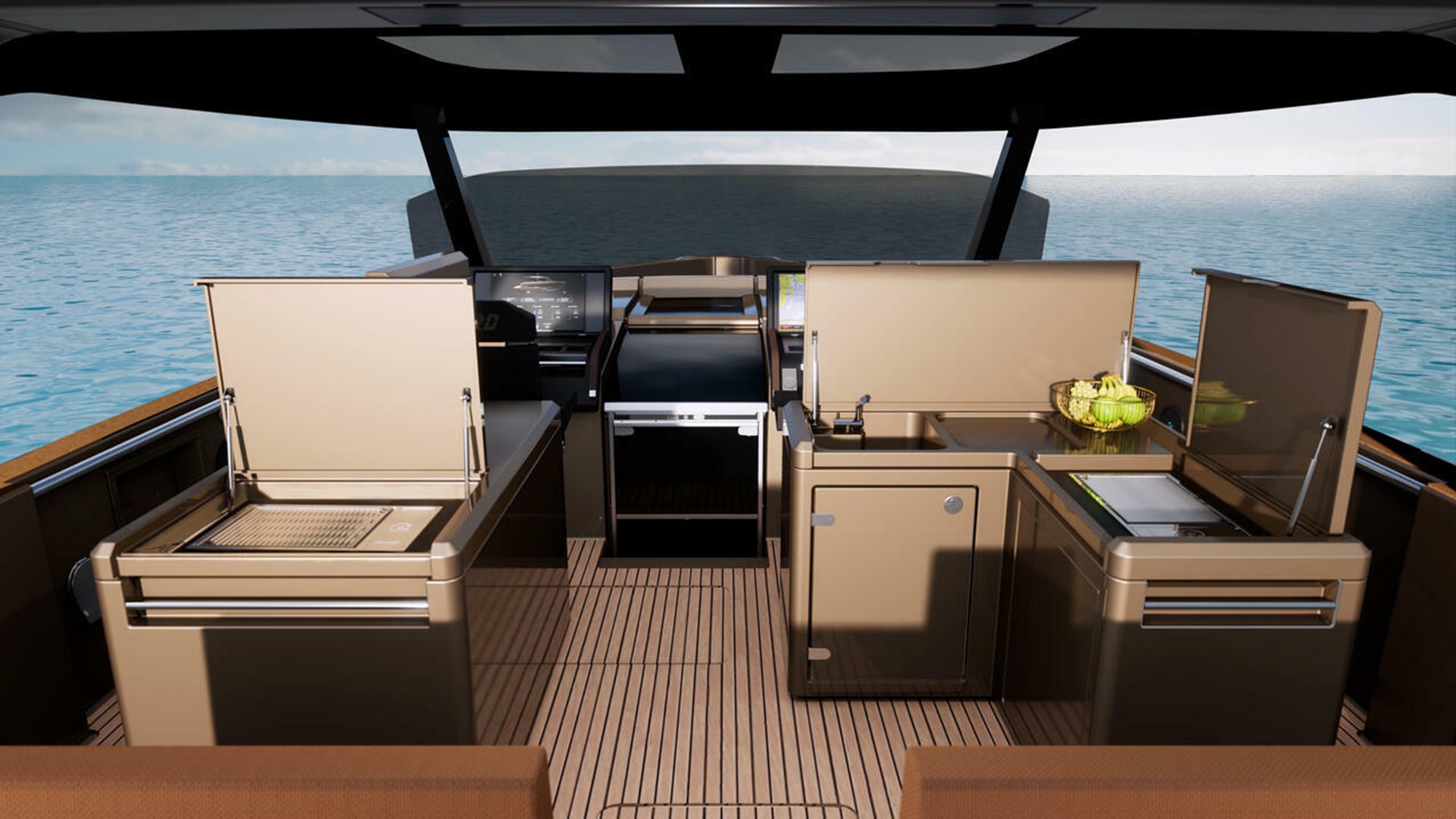

/ F1: Pilot and copilot seat with L-shaped galley module on sb side, sink with folding mixing tap, fridge 130 l, working top in marine mineral stone, electric cooking top and storage. Cover for everything

/ G1: Storage area with hydraulic opening, sunpad, 2 foldable cockpit tables with electric high/low leg, cockpit benches with reversible backrest. Cover for everything

Upholstery & Wood

/ Upholstery scheme: porto bello, colour: creme (according to colour card)

/ Exterior seating material, upholstery scheme: matrix, colour: gull wing (according to colour card)

/ Upholstery helmsman seats - synthetic leather, colour: dark grey (according to colour card)

/ Deluxe mattresses in all cabins

/ Interior furniture in high quality marine plywood, colour: warm mahogany (according to colour card)

/ Flooring in all cabins in: pale acacia (according to colour card)

Transport

/ Identified locations for hand held fire extinguishers - (hand held fire extinguishers are not supplied), FJORD Owner's Manual in FJORD document bag

F53xl.22 SPEC 20211121

Interior

When the day is over, the FJORD 53 XL continues to excite. Two impeccably styled double cabins offer the perfect retreat to get inspired and relaxed at the same time. The interior is furnished with surfaces so noble your hands wish to feel them. Headroom, berth size and storage room go beyond your previous ideas of a powerboat. Get below deck and feel the atmosphere of privacy, space, purism and elegance!

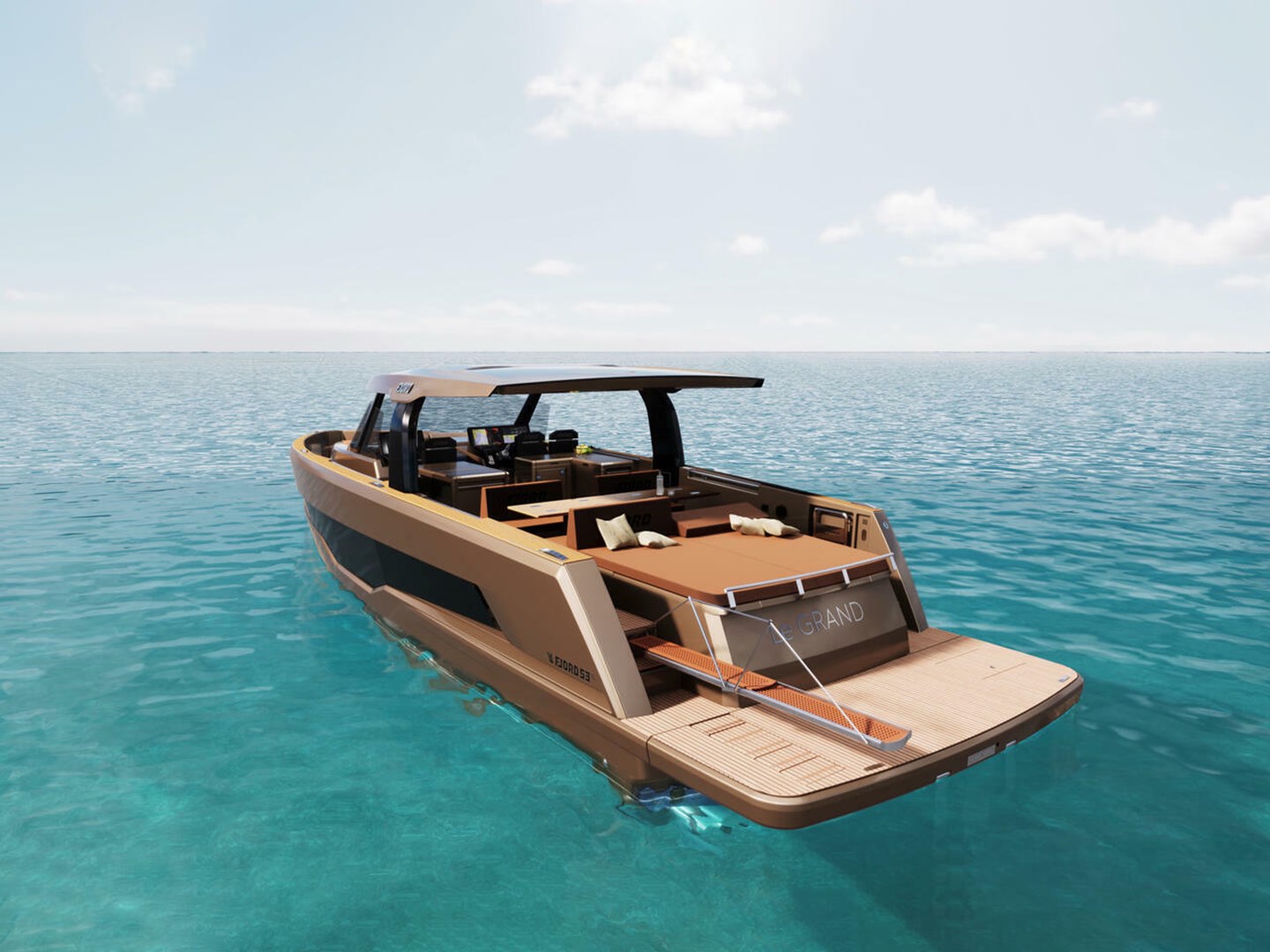

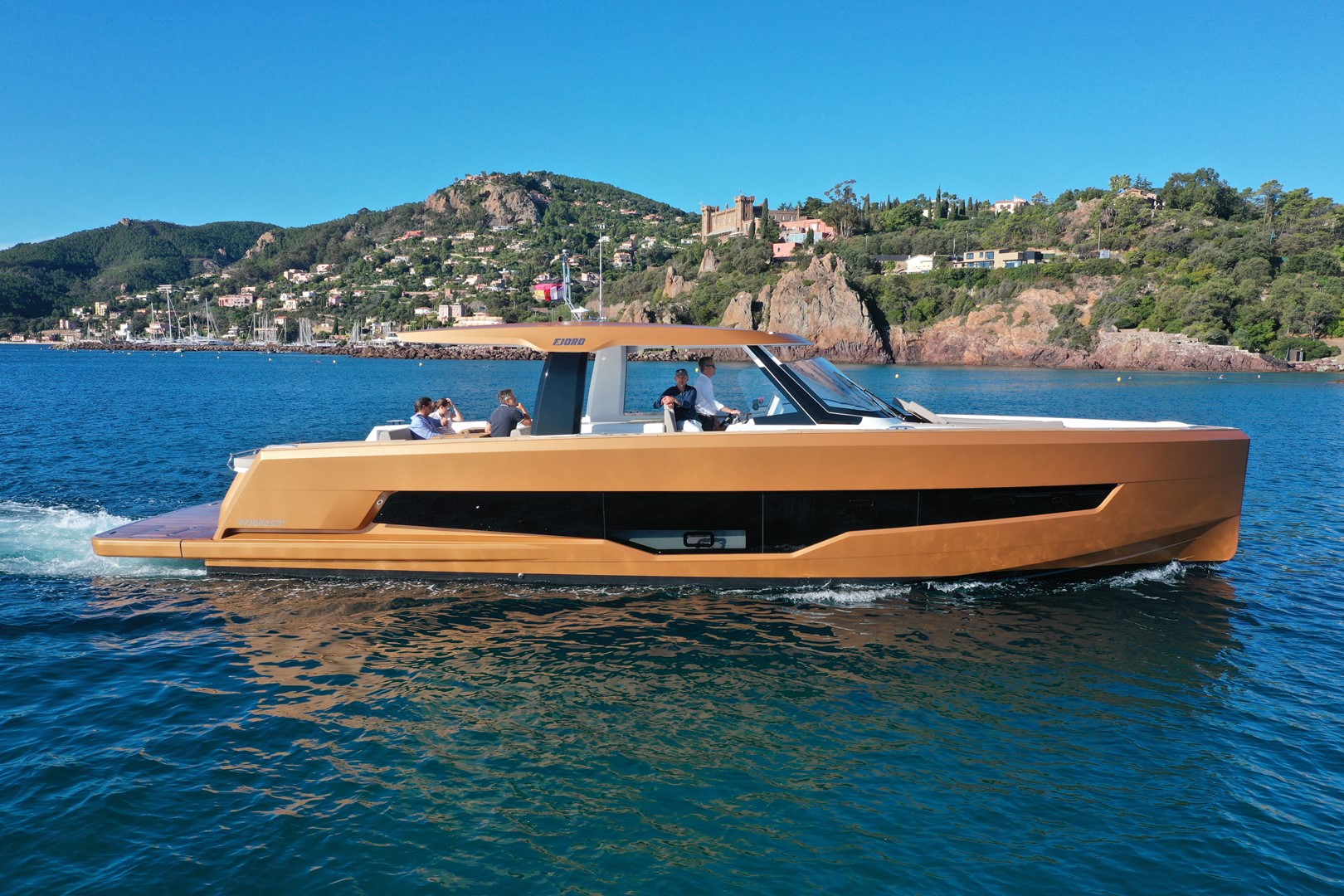

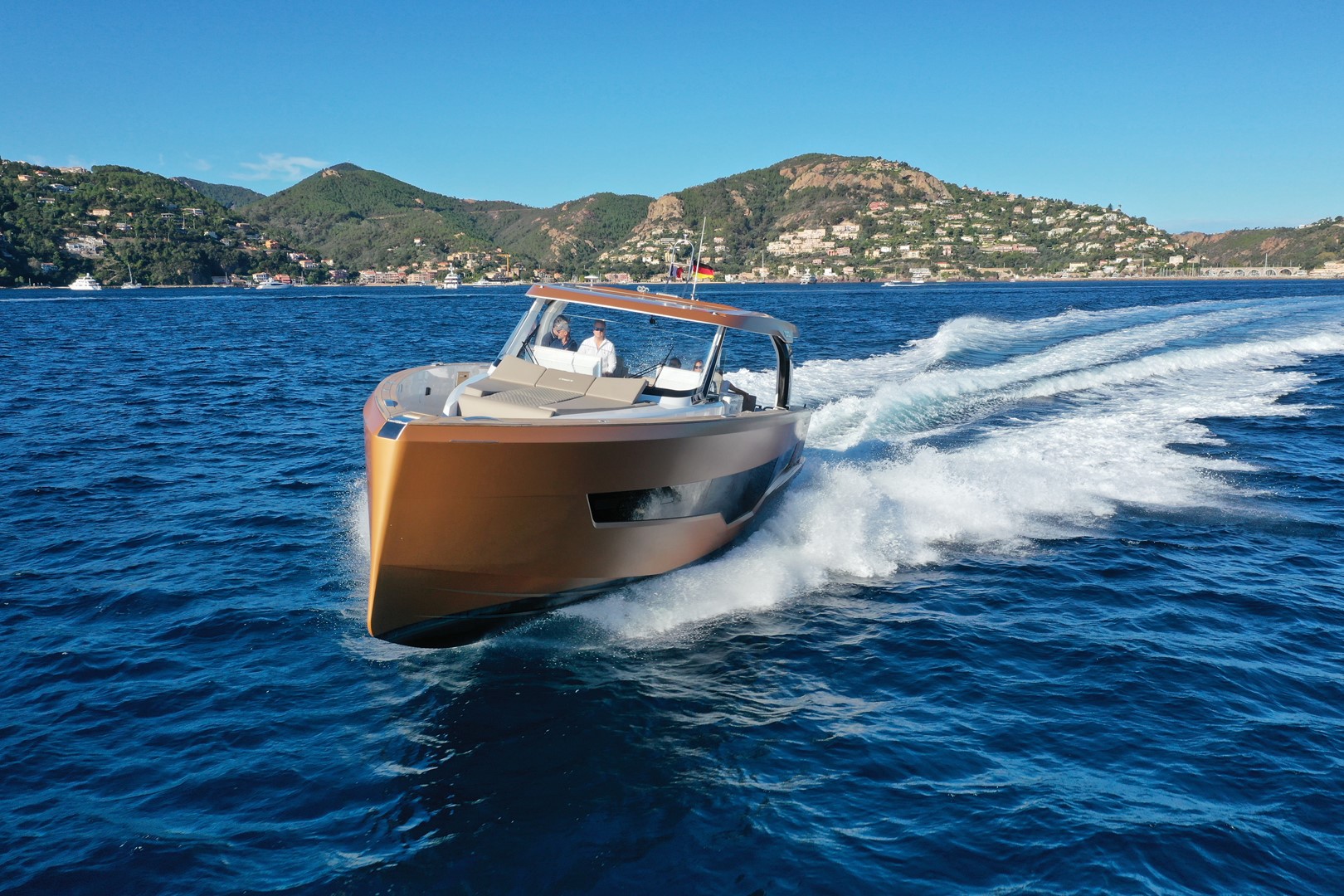

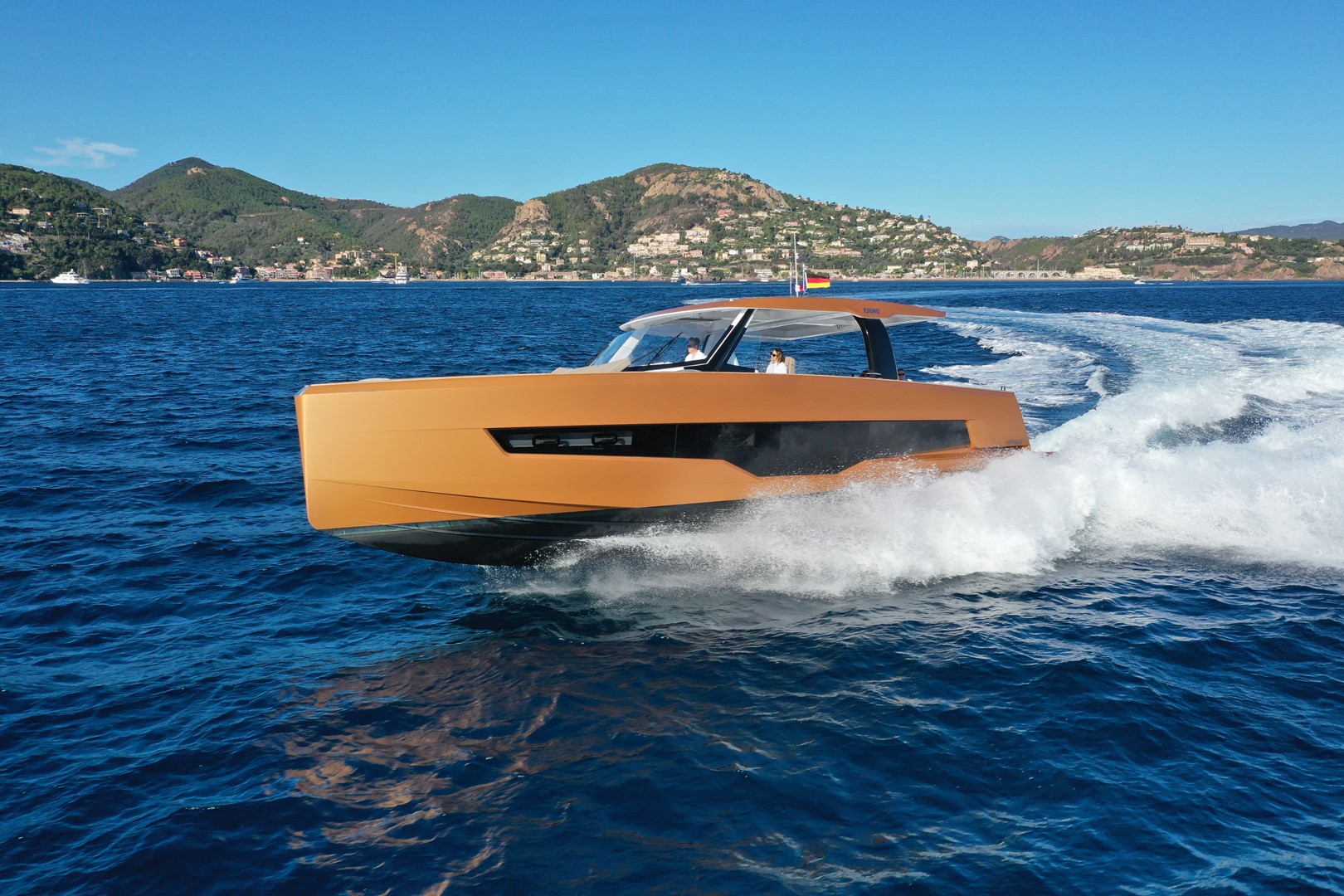

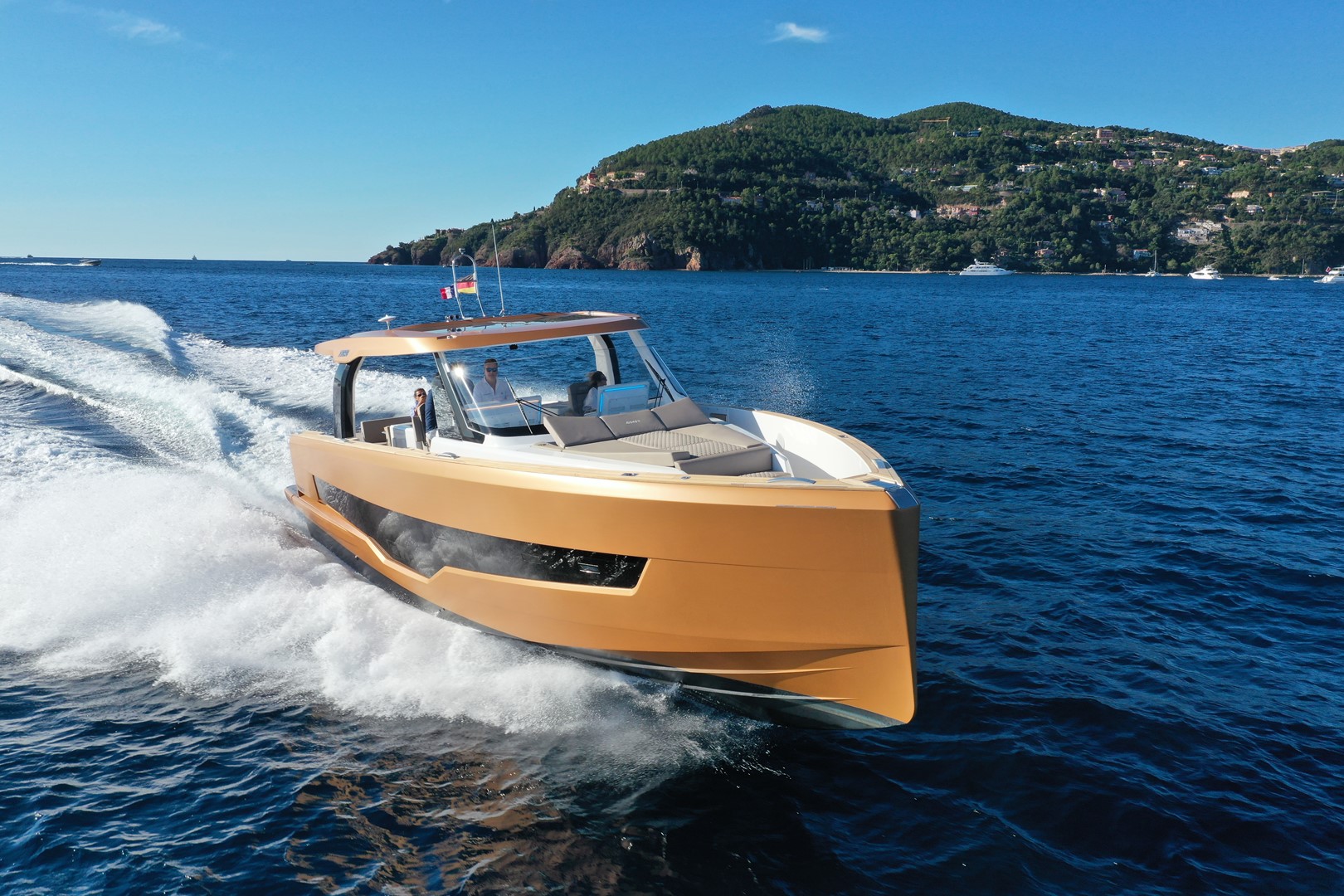

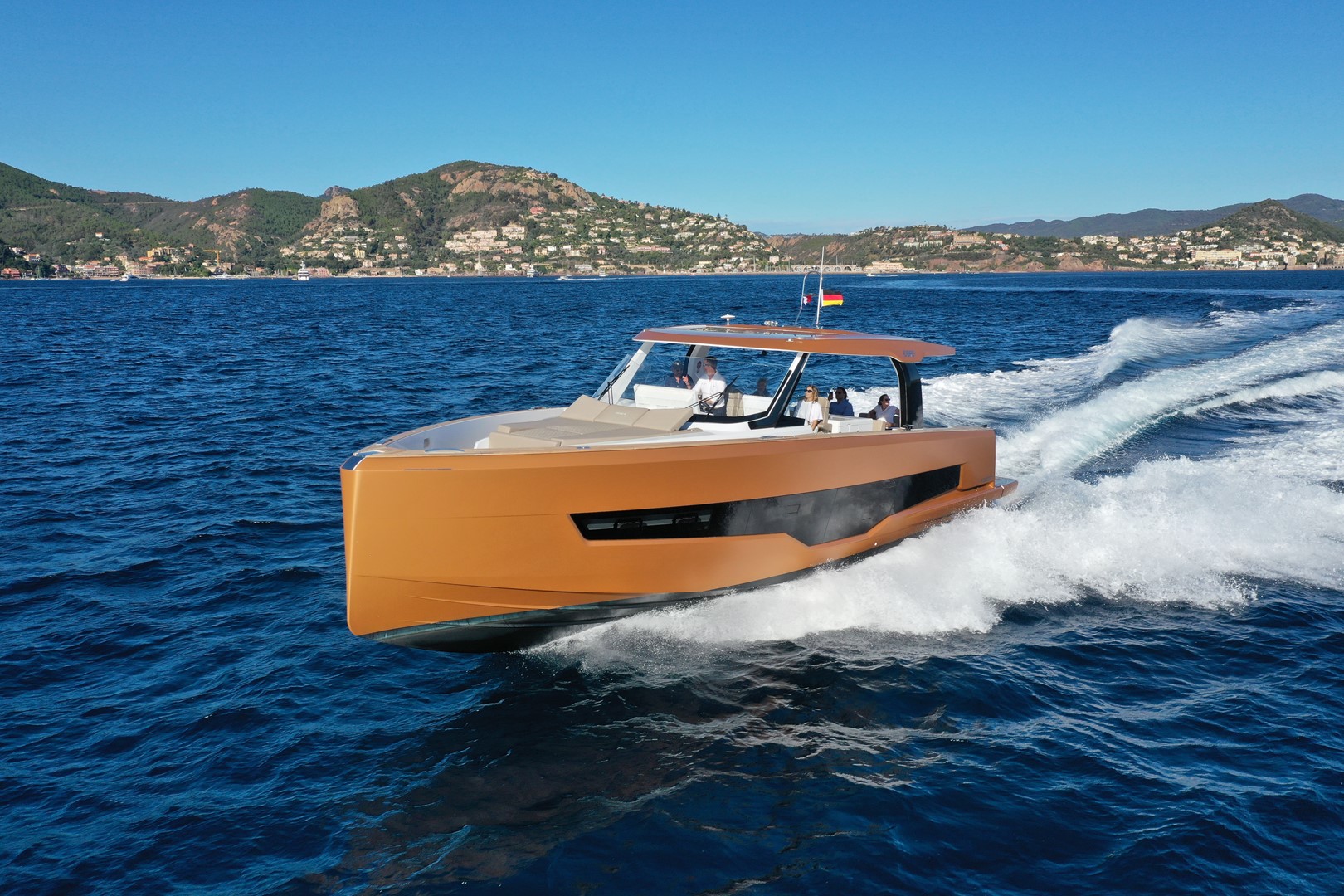

Exterior

The FJORD 53 XL makes you understand how the word „breathtaking“ was born. Two Volvo Penta IPS700 engines easily lift the bow from the water. If you prefer to get thrilled by the extreme, take the 1,200 horsepower version with two IPS800 engines, boosting the speed up to 34 knots. The FJORD 53 XL is the ultimate powerboat and makes no secret of it – time to outrun the ordinary!
